Heat exchanger is important in power plants, refineries, HVAC and process industries. To guarantee efficiency, safety and long-term performance, it is important that tube joints are leak-free. It is here that a tube expander set comes in handy. With a high level of precision and durability, the tools are used to establish a tight mechanical bond between tubes and tube sheets, which avoids failures that may cause disruption in the operations.

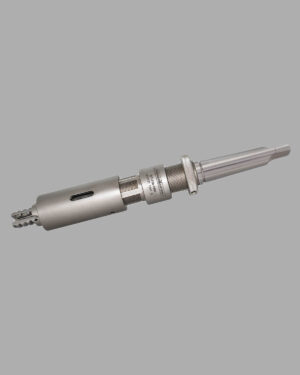

What Is a Tube Expander Set?
A tube expander set is a special mechanic implement to radially expand the outer diameter of a tube against the tube sheet hole. This is a regulated growth that forms a well-developed metal-to-metal bond that promotes the best heat and structural integrity. Healthy growth lowers the chances of leakages, cross-contamination and early deterioration of equipment, and these tools are essential in both installation and maintenance processes.
Key Components of a Tube Expander Set
Any tube expander tool comprises components that have precision engineering:
- Cage: Clamp the rollers and mandrel together
- Mandrel (Pin): The cylinder that causes the rollers to be pushed out
- Rollers: Rollers that normally touch the inner surface of three to five in number
- Thrust Collar: Controls roll depth and uniform expansion
These parts permit proper management of expansion pressure and depth, which is vital to heat exchanger dependability.
Types of Tube Expanders Used in Maintenance
Different applications require specific expander designs:
- Thin-walled tube Heat exchanger and condensers expanders
- Boiler Tube Expanders of heavier tubes, which might need flaring
- Parallel Roller Expanders to uniform expansion
- Combined expansion and flaring Flare Rollers Expanders
The proper tube expander tool is chosen to make sure that the tube is used correctly and that the tube will not become damaged.
Proper Operation and Maintenance Practices
Proper expansion of the tube requires the right procedure:
- Tube Preparation: Surfaces should be dry and clean
- Lubrication: The correct lubricants minimize heat and friction
- Wall Reduction Control: Growth should be within material limits
- Step Rolling: This is applied when the roll length is longer than the tube sheet
Other auxiliary equipment, like pipe bevelling equipment are usually applied together with expanders to make tube ends fit properly in advance before installation.
Caring for Tube Expander Tools
Regular maintenance increases the life of the tools and performance:
- Clean expanders every so often to clean them up
- Grease mandrels, rollers, and bearings
- Check for wear, chips or surface damage
- Turn rotating tools off when working on big projects to avoid overheating
Efficiency and replacement cost might be greatly enhanced through proper care.
Key Benefits of Using Tube Expander Tools
- Leak-resistant tube joints
- Improved thermal efficiency
- Fewer shutdowns, maintenance and repairs
- Increased equipment life
Conclusion
Maintenance of heat exchange relies on the correct expansion of the tube, the correct handling of tools and the uniformity of operations. The right tube expander set will assist to producing joints that are reliable and do not leak, and maintain tube and tube sheet integrity. These practices can be combined with proper preparation techniques, lubrication, and secondarily supported devices such as pipe bevelling tools to improve the thermal efficiency, decrease the downtimes, and increase the total service life of the heat exchanger systems.
